Transparent back cover (1*1)
No.22447
Brand: Chitwing Origin: Guangdong, China
The mold is designed with standard mold base FCI3545.70120120, sub gate,
the pin point gate turns to the side gate, smooth surface polished to A1
| Injection/runner type | Cold runner |
| Type | Three-plates mold |
| Standard | LKM |
| Steel of cavity and core | Harden (1*1/S136) |
| Part material | PC |
The mold has a moderate side of 400.000 X 450.000 X 421.000mm and net weight of 470kg,
easy for transportation and storage. The tool life is up to 500k shots. The part material is PC;
the part weight is 24g, the part size is 150.4X 78.5X 11.8mm. Fit 140T machine.
| Features | 4 slides |

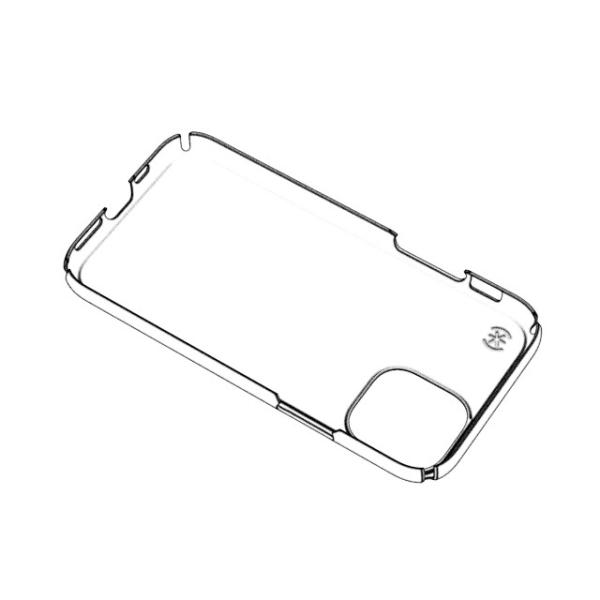

Display diagram
