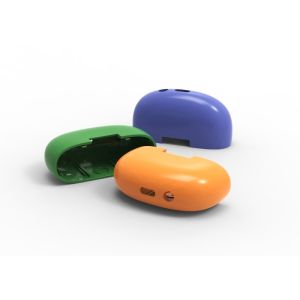

Headphone Charging
Box Lower Cover (1*2)
No.24197
| Brand | chitwing | Origin | Guangdong, China |
Uniform wall thickness, standard mold base FCI3550.A100 B130 C90; the mold size is
400 X 500 X 436mm, the mold net weight is 583 kg, the inner wall is smooth without roughness;
the mold is made from high quality steel, the surface hardness > 600HV, and the mold fits
110T machine;
| Gate | Pin point gate (hot runner turns to cold runner) | ||
| Tool life | 500k shots | ||
| Type | Two-plates mold | ||
| Part material | PC+ABS | ||
The part size is 62.89 * 23.96 * 20.53mm, and the part weight is 8.6g.
| Surface finish | 1. A surface polished to SPI-A1 | ||
| 2. Inner surface EDM with VDI21# (Makino) | |||
| Injection/runner type | Hot runner | ||
LKM standard, harden the cavity and core with S136 to have higher hardness and
anti-wearing performance; with 2 slides and 6 lifter design, improving the part quality
and productivity
Display diagram
