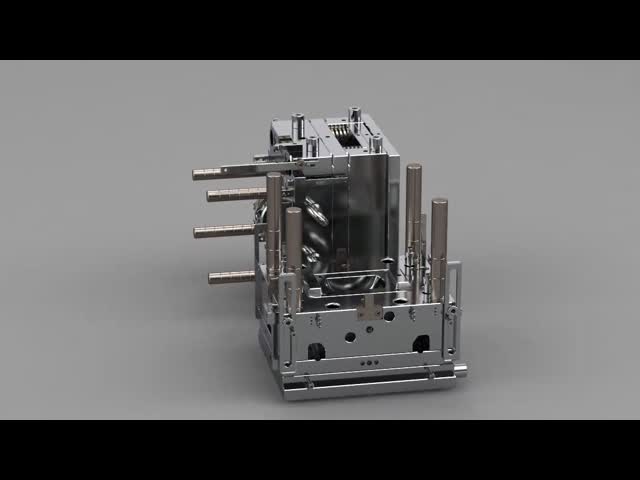

POA Rear Pad (1*1)/ Cold runner /Three-plates mold No.22729

Ask Latest Price
Video Channel
Brand Name :Chitwing
Model Number :VR Products
Certification :ISO 9001:2015
Place of Origin :Vietnam
MOQ :1set
Price :Negotiable
Payment Terms :L/C, T/T
Supply Ability :180 set/month
Delivery Time :30 day(s)
Packaging Details :The mold is packaged with a wooden box and placed on a wood pallet.
Size :400 X 450 X 429
IMM Tonnage :110T
Mold Weight :482kg
Mould material :S136
Material :PC+ABS
Mould life :500,000 shots
Mould base :LKM
Design software :3D:UG 4.0/2D:CAD
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

POA Rear Pad (1*1)

No.22729

The mold is designed with cold runner. A surface with MT11010 etch; partial surfaces EDM with

VDI27# (Makino), LKM standard

Length Width Height
400 450 429
Gate Pin point gate
Tool life 500k shots

POA Rear Pad (1*1)/ Cold runner /Three-plates mold No.22729POA Rear Pad (1*1)/ Cold runner /Three-plates mold No.22729

Three-plates mold structure, harden cavity+core (1*1/S136) with hardened surface,

hardness > 600HV

POA Rear Pad (1*1)/ Cold runner /Three-plates mold No.22729

Part material PC+ABS
Features 2 slides and 18 lifters

★ Mold net weight: 482 kg (IMM tonnage: 110T)
★ Part net weight: 15g
★ Part size: 158.51 X 47.92 X 70.83mm

Display diagram

POA Rear Pad (1*1)/ Cold runner /Three-plates mold No.22729POA Rear Pad (1*1)/ Cold runner /Three-plates mold No.22729POA Rear Pad (1*1)/ Cold runner /Three-plates mold No.22729POA Rear Pad (1*1)/ Cold runner /Three-plates mold No.22729
