Transparent Smart Doorbell Button (1*4)
No.23675 & 23676
Custom mold base P/N: FCI2330.609080.
General plastic mold standard LKM in China
| Size | The mold net weight is 145 kg, fits 120T 2k machine. The molded part size is 28.36 X32.16 X11.6mm, and the part weight is about 0.5g for one shot/1.3g for two shots. | |||||
| Length | Width | Height | ||||
| 230 | 390 | 336 | ||||
| A surface polished to SPI-A1; harden the cavity and core with S136 to have higher hardness and anti-wearing performance. Hardening and tempering at different temperatures greatly improve the strength and anti-fatigue performance of the mold, with the tool life up to 500k shots | ||||||
| Gate | Side gate+pin point gate (hot runner turns to cold runner) | ||||
| Type | Two-plates mold | ||||
| Injection/runner type | Hot runner | ||||
| Part material | PC/TPU | ||||
| Features | 2k mold |

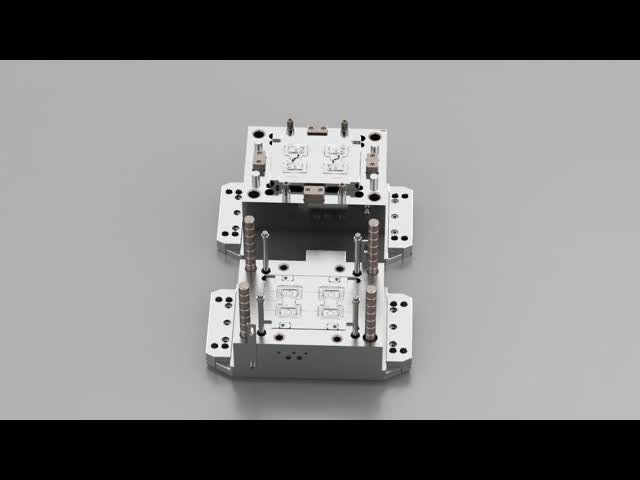

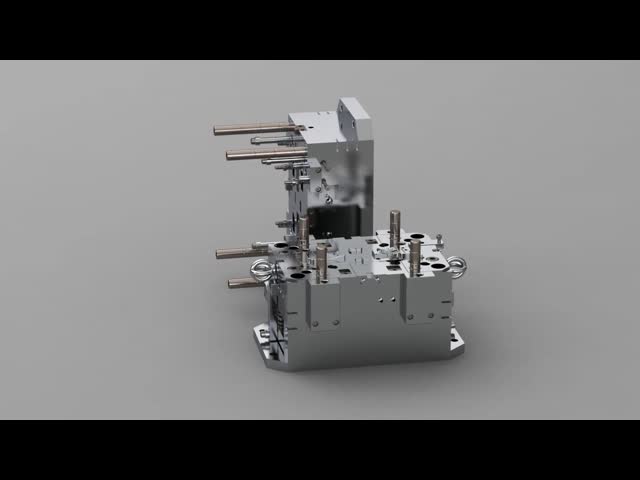

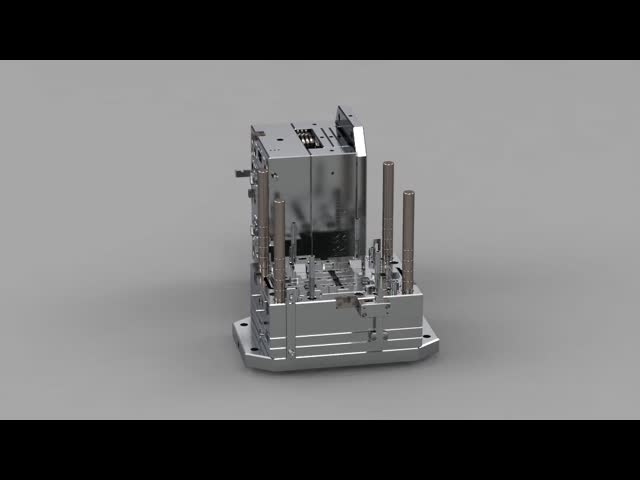

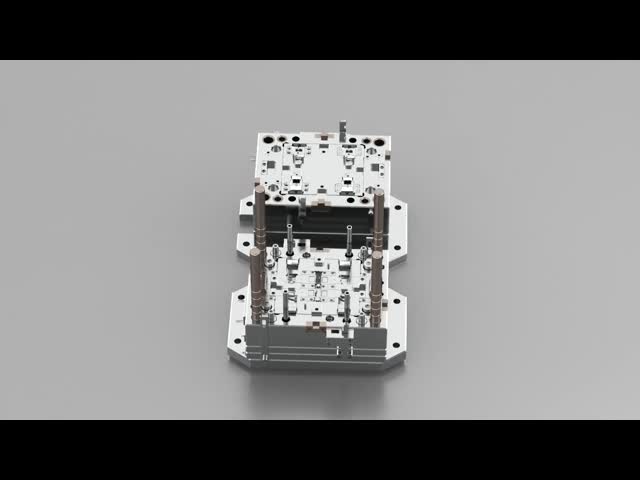

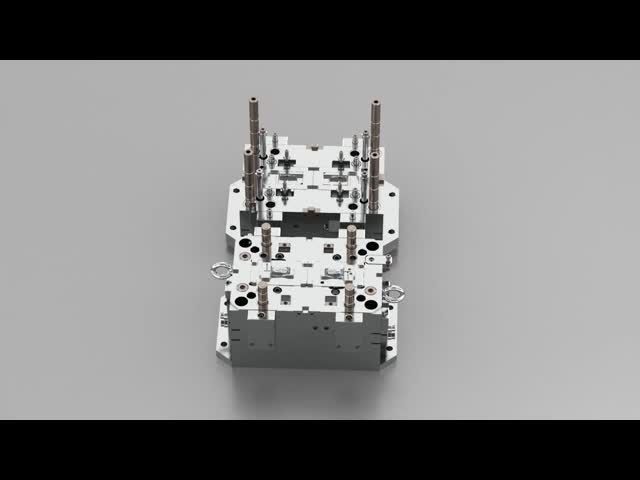

Display diagram
